This post documents three recently disclosed vulnerabilities in pfSense. All vulnerabilities discussed in this post were responsibly disclosed to Netgate between November and December 2024. As of publication, more than 150 days have passed since initial contact, well beyond the standard 90-day disclosure window. Fixes are currently available in the public pfSense 2.8.0 beta, the GitHub master branch, and have also been made available to pfSense Plus users via their early access channels. While the CE stable release is still pending, this post is published to promote transparency, recognize the research, and encourage timely patch adoption.
🔒 ACB Cloud Backup Key Hijack & Stored XSS
Vulnerability Type: ACB cloud backup key derivation flaw enables unauthorized backup manipulation and stored XSS
CVE ID: CVE-2024-57273
The free-to-use Netgate service for cloud backups allows a pfSense firewall to store and retrieve data on their server at acb.netgate.com. The hijacking of ACB (Automatic Configuration Backup) service key can lead to:
- Deletion of cloud backups
- Injection of Javascript code (XSS) in the GUI
- Information leakage
Prerequisites for Exploitation
For this vulnerability to be exploited, two things must be enabled:
- SSH server open & accessible (to fetch the server public key and hostname)
- ACB configured (not enabled by default)

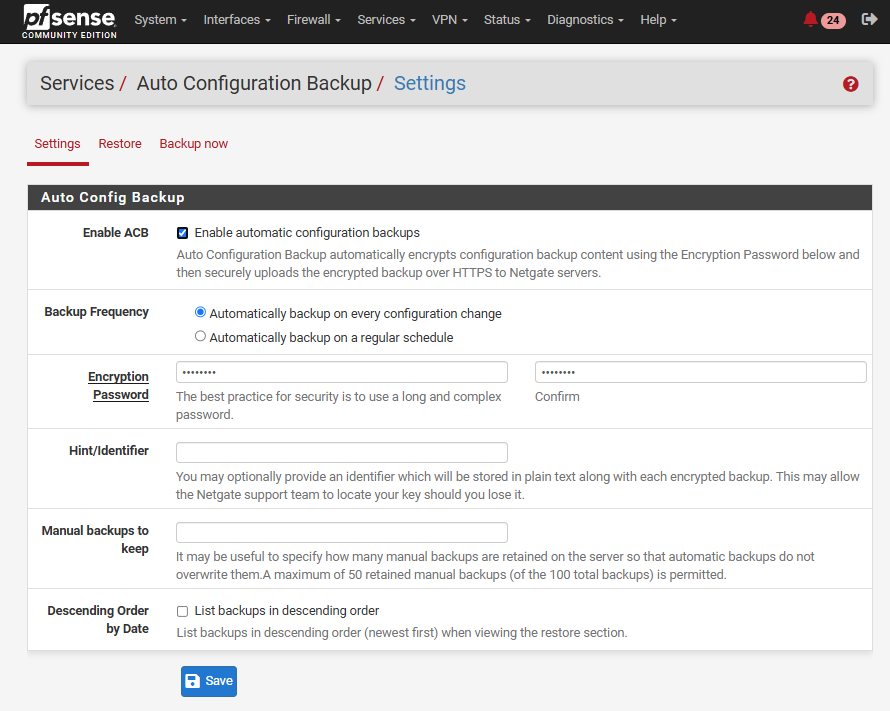

To enable this functionality, the administrator browses to the page /services_acb_settings.php:
Behind the scenes, the firewall sends POST queries to acb.netgate.com at these different endpoints:
/getbkp- to retrieve a specific encrypted backup to restore/list- to retrieve the list of previous backups and display them in the “restore tab”/save- to add (save) a backup in the cloud/rmbkp- to delete a preexisting cloud backup

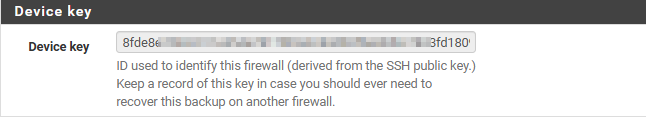

Interestingly, the API key needed to interact with your backups is the hash of the public SSH key generated in /etc/ssh/ssh_host_ed25519_key.pub. The computed key is also displayed in the “Backup now” tab:
If the key does not exist, the appliance generates it automatically using this command:
// If there is no ssh key in the system to identify this firewall, generate a pair now
exec("/usr/bin/nice -n20 /usr/bin/ssh-keygen -t ed25519 -b 4096 -N '' -f /etc/ssh/ssh_host_ed25519_key");
However, it is easy to reconstruct the content of an SSH public key if the service is exposed. The content of the public key can be retrieved as it is loaded by default by the SSHD server. This allows an attacker to compute the key needed to interact with the API as the appliance.
Exploitation

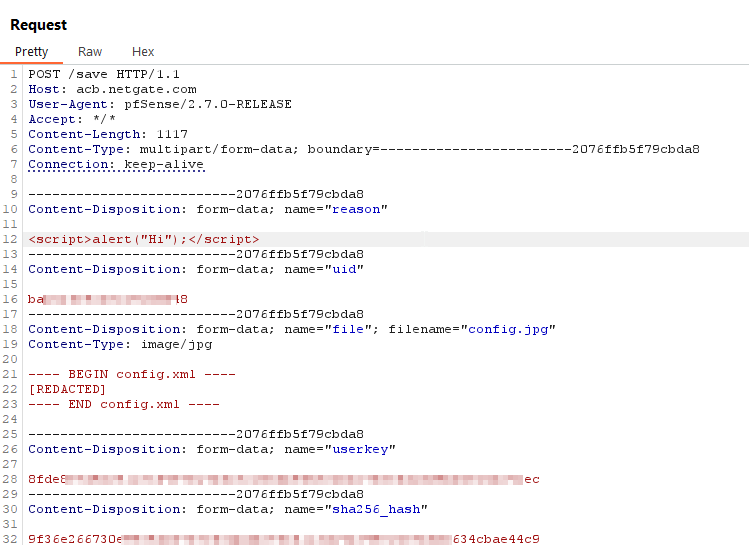

At this point, I was curious to see if an attacker could manipulate the information stored in the ACB backup server so that unexpected behaviors would be triggered on the pfSense firewall when queried. It turns out that the ACB server’s logic is not very restrictive, allowing the saving of pretty much any text content in various fields, including the date, reason, and the actual backup content. This allows saving a JavaScript payload in the “reason” field:

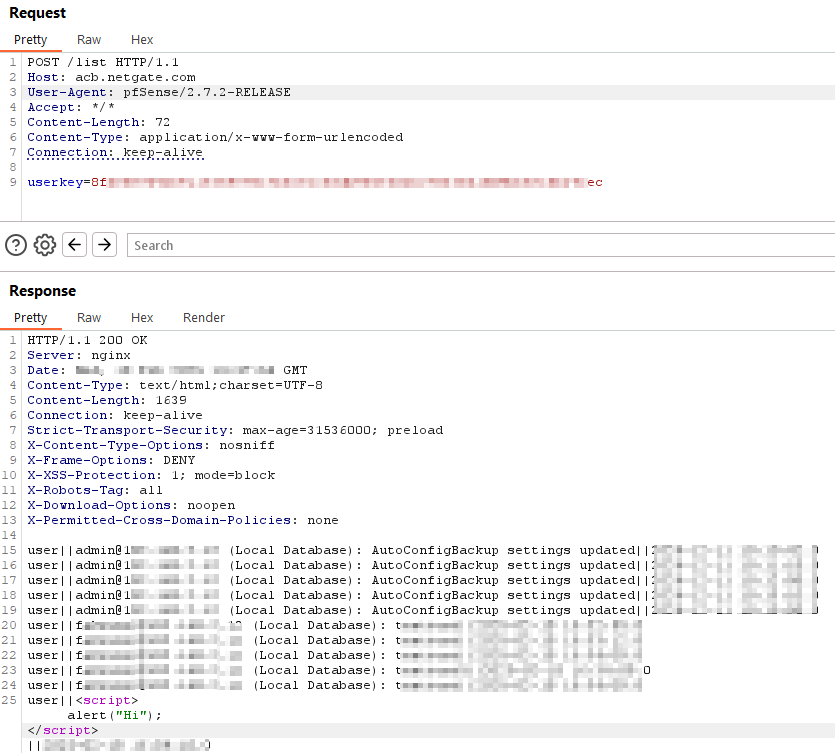

Subsequently, when an administrator visits the page /services_acb.php, the appliance’s logic to retrieve the list of backups (POST /list) will fetch the poisoned list:
Finally, the returned backup “reason” is displayed in the page without any further filtering, as per this PHP code:
[...]
<td><?= $cv['localtime']; ?></td>
<td><?= $cv['reason']; ?></td>
[...]
Impact
In summary, if you are using this cloud service and have SSH exposed, it is easy for someone to derive the key and delete your cloud backups or poison them. Also, since pfSense has a built-in webshell, XSS payloads can lead to RCE as demonstrated here.
Retrieving full backup configs is also possible, but they are encrypted using AES-256 with a user-provided password of at least 8 characters. The patch prevents the XSS and allows admins to set a different API key manually.
See the pfSense bugtracker for additional details:
- https://redmine.pfsense.org/issues/15927
Timeline
- 2024-12-11 - Vulnerability reported to [email protected]
- 2024-12-12 - XSS mitigation pushed to master
- 2025-02-24 - CVE assigned
🔒 OpenVPN Widget Command Injection
Vulnerability Type: Authenticated command injection in the OpenVPN widget via unsanitized input parameter
CVE ID: CVE-2024-54780
This vulnerability is a simple authenticated command injection in the OpenVPN management interface. Authenticated users with permission to the main Dashboard can send a malicious payload via the remipp field, which is used to terminate a client connection. This value is passed to the function openvpn_kill_client without proper filtering. The function connects to the OpenVPN management interface via a Unix socket and writes: "kill {$remipp}\n".
Vulnerability Details
Unsanitized user inputs $port, $remipp, $client_id in openvpn.widget.php:
if ($_POST['action']) {
if ($_POST['action'] == "kill") {
$port = $_POST['port'];
$remipp = $_POST['remipp'];
$client_id = $_POST['client_id'];
if (!empty($port) and !empty($remipp)) {
$retval = openvpn_kill_client($port, $remipp, $client_id);
}
[...]
}
}
Then, the input is written directly to a socket file:
function openvpn_kill_client($port, $remipp, $client_id) {
[...]
if ($fp) {
if (is_numeric($client_id)) {
fputs($fp, "client-kill {$client_id} HALT\n");
} else {
fputs($fp, "kill {$remipp}\n");
}
[...]
This allows a user to inject a newline character (%0A) followed by a secondary command. For example:
remipp=5%0Astatus
The above payload results in two commands being executed: kill 5 and status.
Impact
The impact is fairly low, as the user doesn’t receive any output from the resulting commands, and the interface only allows a limited set of functions to manage the VPN server rather than arbitrary shell commands.
See the pfSense bugtracker for additional details:
- https://redmine.pfsense.org/issues/15856
Timeline
- 2024-11-19 - Vulnerability reported to [email protected]
- 2024-11-22 - Patch provided
- 2024-12-02 - Fix pushed to master
- 2025-01-07 - CVE assigned
🔒 XML Injection in Dashboard Widgets
Vulnerability Type: XML injection in dashboard widgets allows configuration corruption (DoS) and persistent XSS attacks
CVE ID: CVE-2024-54779
Any authenticated user with access to dashboard widgets in pfSense can inject arbitrary XML structures into the main configuration file via the widgetkey parameter. This vulnerability allows attackers to not only corrupt the configuration file causing denial of service, but also execute stored XSS attacks against administrators who access the dashboard. The fundamental flaw exists in how the widget framework processes and stores user input without proper validation or sanitization. Most dashboard components and some external packages are affected because they share this vulnerable code pattern.
- pfSense stores widget configurations inside
<widgets>XML tags in its main configuration file (/cf/conf/config.xml) - The widgetkey value is used as a key to store settings.
The value widgetkey is directly incorporated into XML structures with no sanitization. For example:
$user_settings['widgets'][$_POST['widgetkey']]['filter'] = $data;
save_widget_settings($_SESSION['Username'], $user_settings["widgets"]);

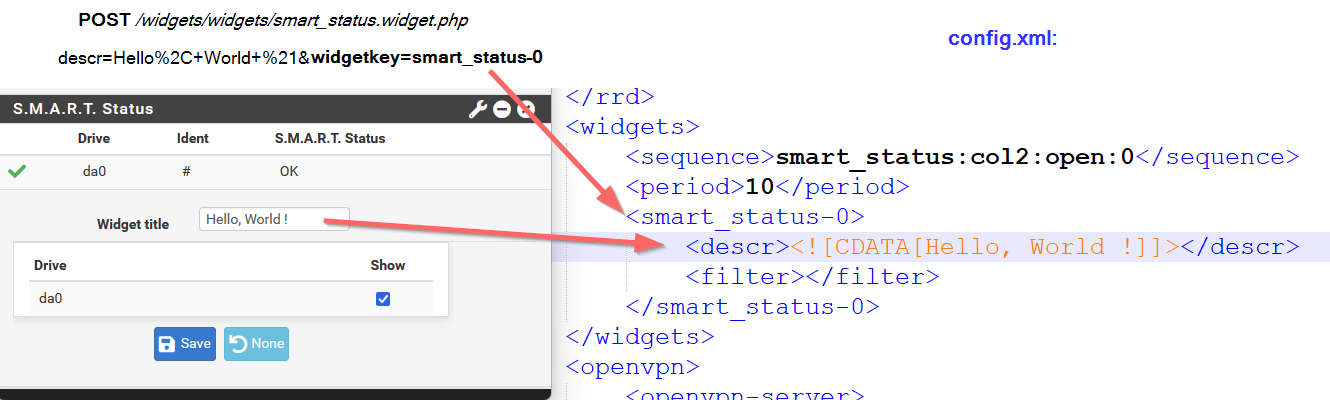

This code directly inserts the value of $_POST['widgetkey'] as an XML key in the config file. To demonstrate, we can configure the S.M.A.R.T Status widget and observe how the injected value appears in the configuration file. The same behavior occurs with other dashboard widgets.
The field descr for description gets escaped properly in all cases, but the field widgetkey is left unsanitized for manipulation, and then written to the main configuration file with its corresponding closing tag. In other words, sending widgetkey=atag will also write </atag>.
Denial of service
The most immediate impact of this vulnerability is the ability to corrupt the configuration file of the appliance. As an example, when sending a POST request with the payload: widgetkey=none/>, an XML structure will get written in the main configuration file containing:
<none/>>
<descr><![CDATA[Hello, World !]]></descr>
<filter></filter>
</none/>>
This results in a non-compliant config.xml due to invalid XML structure. Because it is used upon boot, this will generate PHP Fatal errors and even prevent the application from bootstrapping properly, effectively breaking the firewall application and its services (even SSH) entirely:
PHP Fatal error: Uncaught TypeError: Cannot access offset of type string on string in /etc/inc/xmlparse.inc:73
Stack trace:
#0 [internal function]: startElement(Object(XMLParser), 'DESCR', Array)
#1 /etc/inc/xmlparse.inc(201): xml_parse(Object(XMLParser), 'c.periodic week...', false)
#2 /etc/inc/xmlparse.inc(162): parse_xml_config_raw('/conf/config.xm...', Array, 'false')
#3 /etc/inc/config.lib.inc(136): parse_xml_config('/conf/config.xm...', Array)
#4 /etc/inc/config.gui.inc(53): parse_config()
[...]
Attempting Privilege Escalation
Further exploitation attempts focused on achieving privilege escalation through configuration tampering by overwriting critical parts of the configuration file config.xml like the system tag. In these sections of the configuration file, the firewall sets the users’ password hashes and their privileges.
For instance, it is possible to close the </widgets> tag within the payload, open new tags such as <system>, and comment out the rest of the generated data using XML comment tag <!--:
Payload :
widgetkey=/widgets><system><ssh><enable>enabled</enable></ssh></system><widgets><!--

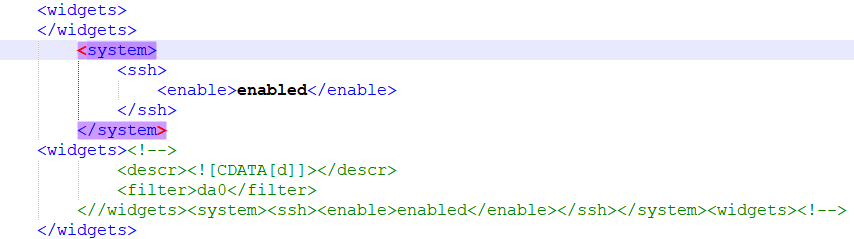

Generated XML in config.xml on the appliance:
However, it turns out that it is only possible to modify entries within the <widgets> XML tags without corrupting the file, as the parser is expecting unique tags:
Fatal error: Uncaught Exception: XML error: SYSTEM at line 286 cannot occur more than once
Stored XSS

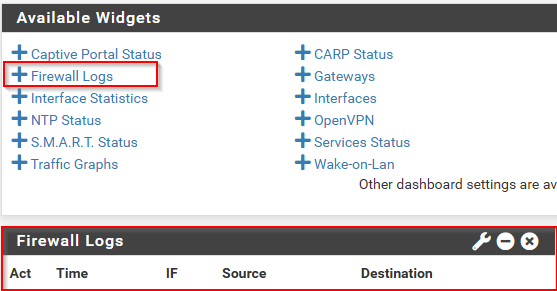

While looking at ways to make use of my injected XML data, I found that the Firewall Logs widget shipped with pfSense retrieves data from the configuration file without sanitization and outputs it within <script> tags.
The logic in the file /www/widgets/widgets/log.widget.php retrieves the value $nentriesinterval from user settings (stored as XML in the main configuration file):
$nentriesinterval = isset($user_settings['widgets'][$widgetkey]['filterlogentriesinterval'])
However, by controlling the value of this stored setting, we can effectively output JavaScript code to the user when the widget loads. More specifically, this PHP code will be displaying the stored value:
logsObject.freq = <?=$nentriesinterval?>/5;
To avoid the generation of invalid code in the user browser, we can add the expected values after our malicious script with this payload:
widgetkey=test/><log-0><filterlogentriesinterval>5;alert("XSS");var test=50</filterlogentriesinterval></log-0><!--
Resulting in this XML configuration file being generated and stored:
<widgets>
<log-0>
<filterlogentriesinterval>5;alert('XSS');var test=50</filterlogentriesinterval>
</log-0>
</widgets>
By targeting the <log-0> tags expected by this widget, the code generated upon loading becomes:
<script>
logsObject.freq = 5;alert("XSS");var test=50/5;
</script>
Displaying the vulnerable widget
Forcing Widget Display Regardless of User Preferences
Even if the administrator is not using the widget (e.g., it is not appearing on the main dashboard upon login), we can easily inject more XML along with this payload in such a way that the widget will get displayed when anyone logs in.
pfSense relies on a key in the widget configuration section named sequence, which is used to keep track of which widgets you are displaying and where they are placed in the dashboard. We can overwrite that setting with the same XML structure injection vulnerability in such a way that any chosen widget will be displayed:
e.g., payload:
widgetkey=test/><sequence>log:col2:open:0</sequence><!--
This ensures that our XSS will get loaded the next time someone loads the dashboard, regardless of previous display settings.
See the pfSense bugtracker for additional details:
- https://redmine.pfsense.org/issues/15860
- https://redmine.pfsense.org/issues/15844
Timeline
- 2024-11-15 - Vulnerability reported to [email protected]
- 2024-11-15 - Vulnerability acknowledged
- 2024-12-02 - Fix pushed to master on all widgets
- 2024-12-02 - Found a work-around for the patch
- 2024-12-03 - Another patch was provided. PHP directive request_order updated on pfSense master.
- 2025-01-07 - CVE assigned
Disclaimer
This post is provided for educational and informational purposes only. The goal is to promote transparency, improve security awareness, and encourage timely patching. No part of this content is intended to enable unauthorized access or exploitation. All research was conducted in accordance with responsible disclosure practices and with the intent of improving the security posture of affected systems.
